Interface pinouts

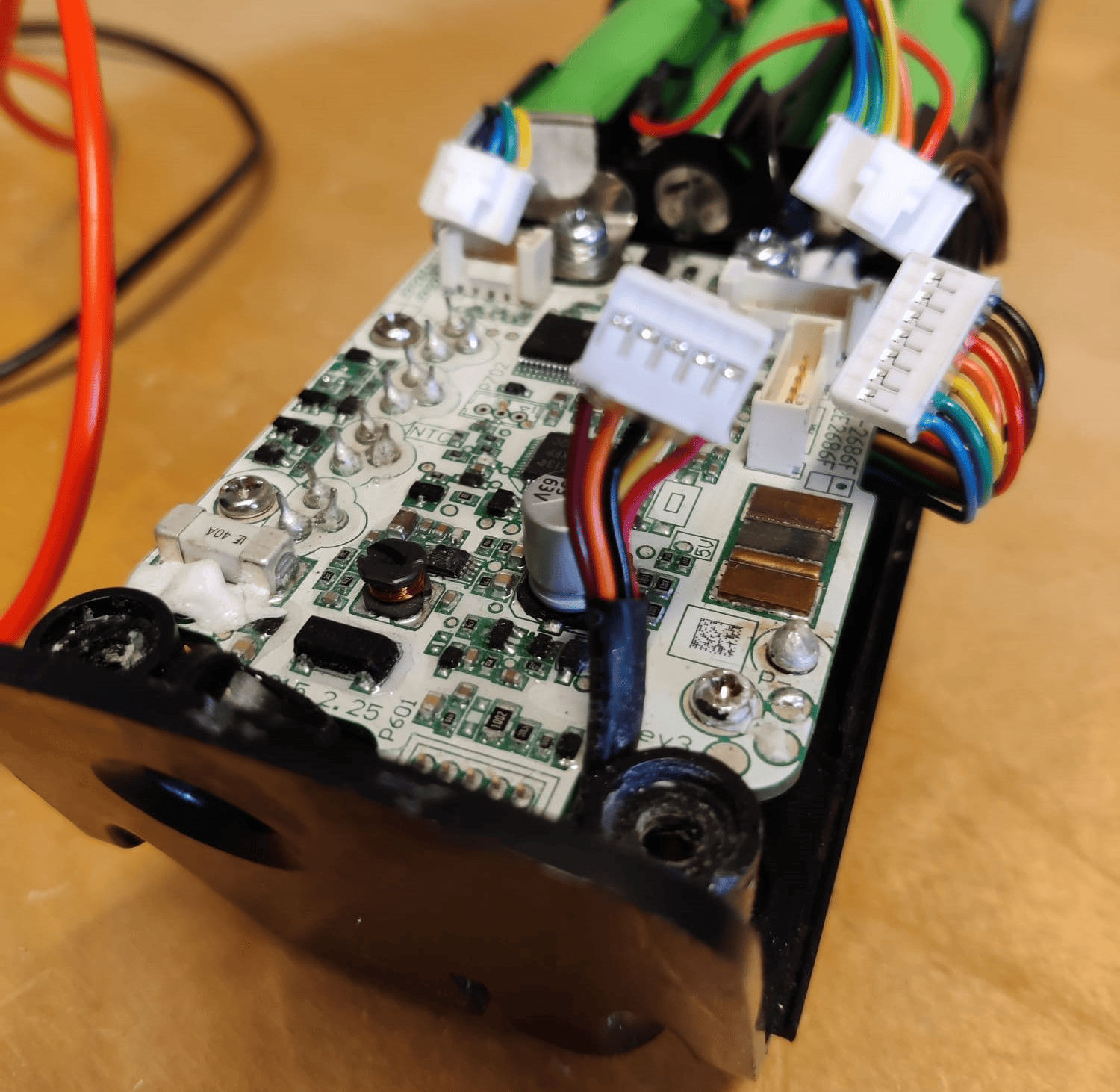

Flat with white BMS board

• Orange wire
• No GND path to the connector, then no NTC taken to the charger

48V version

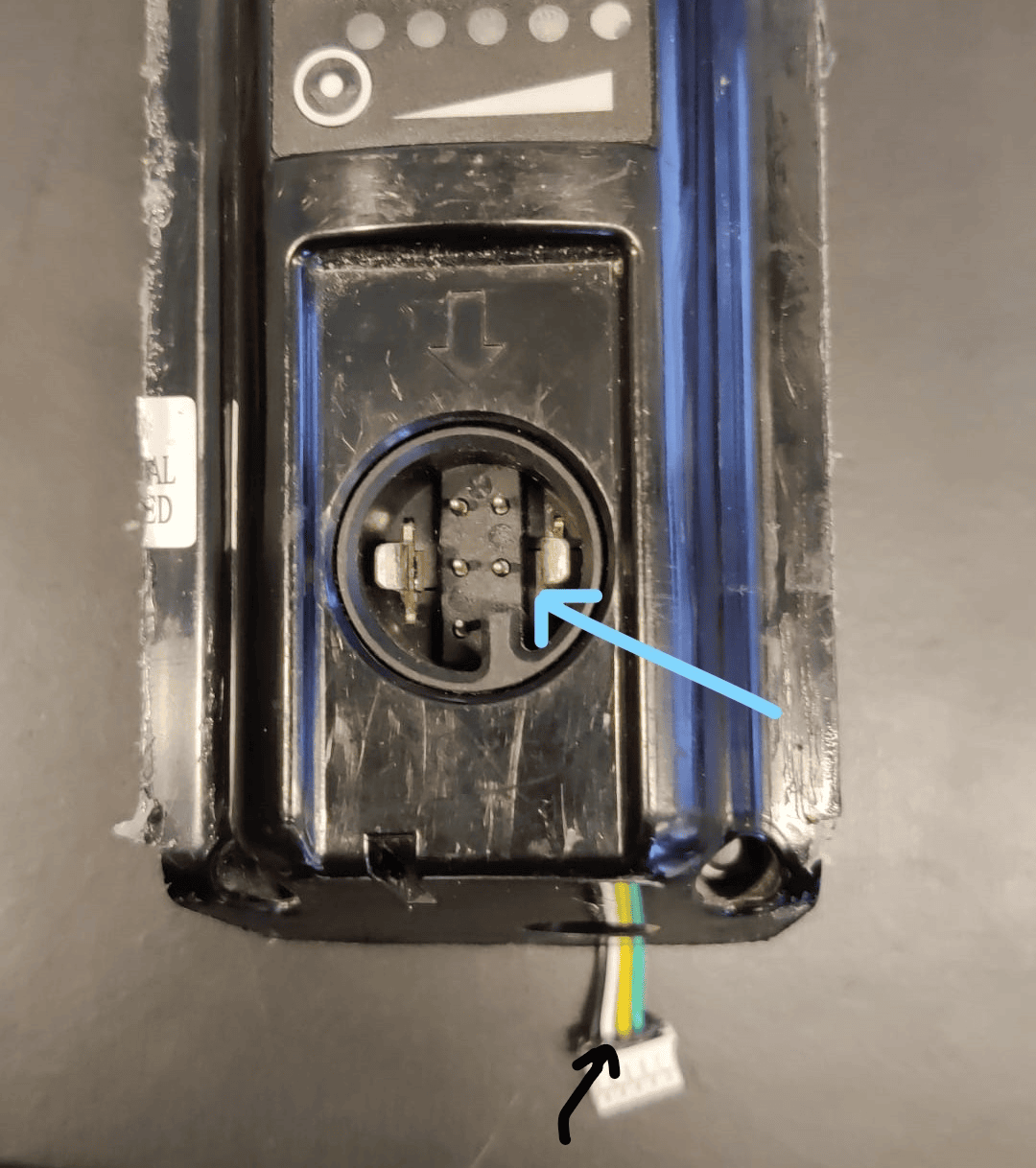

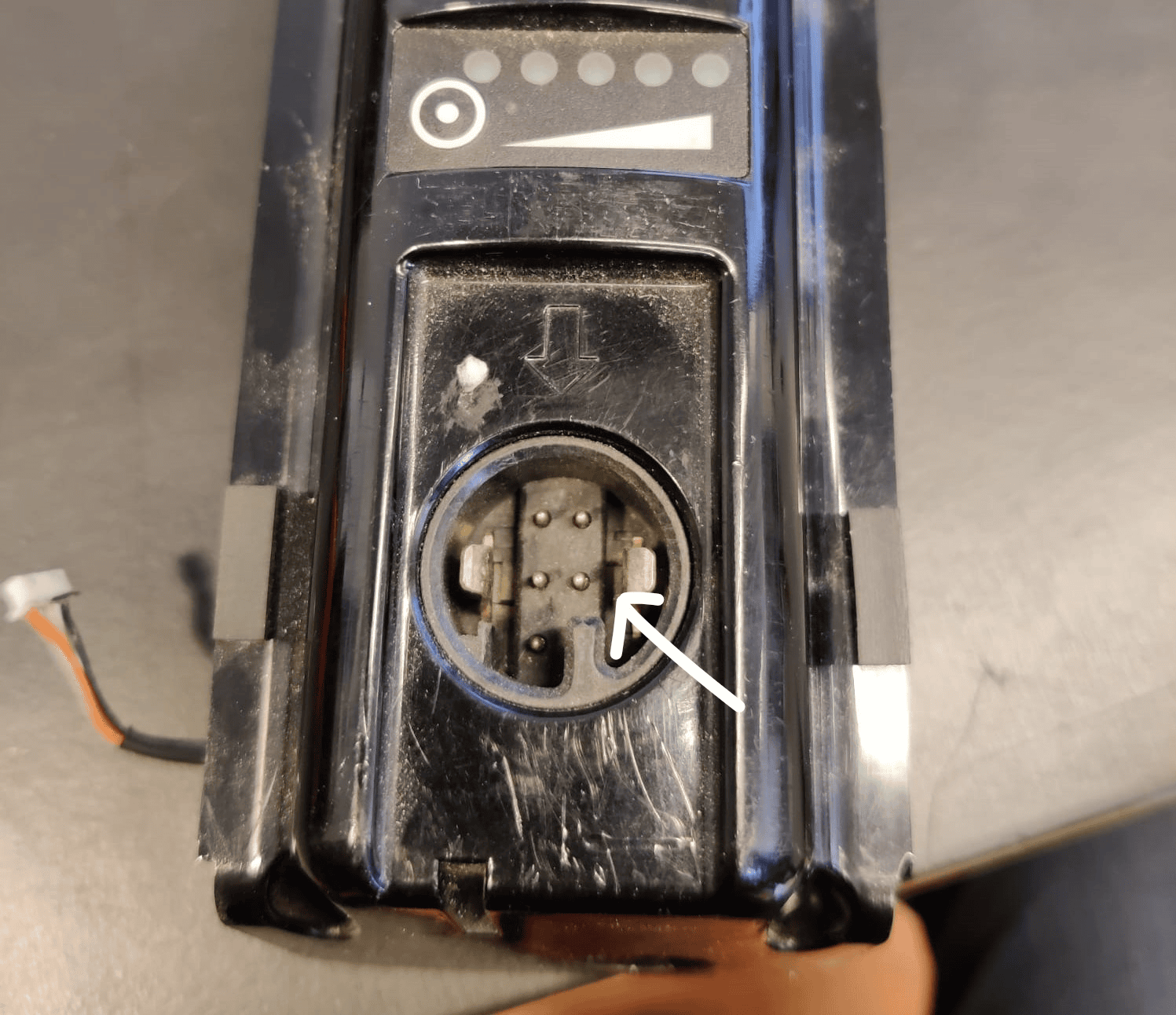

Correspondent pin: Notch side starting from down, the first.

36V version

Careful here. No orange wire, it is the white one! Apparently, there's no NTC connector provided to the charger

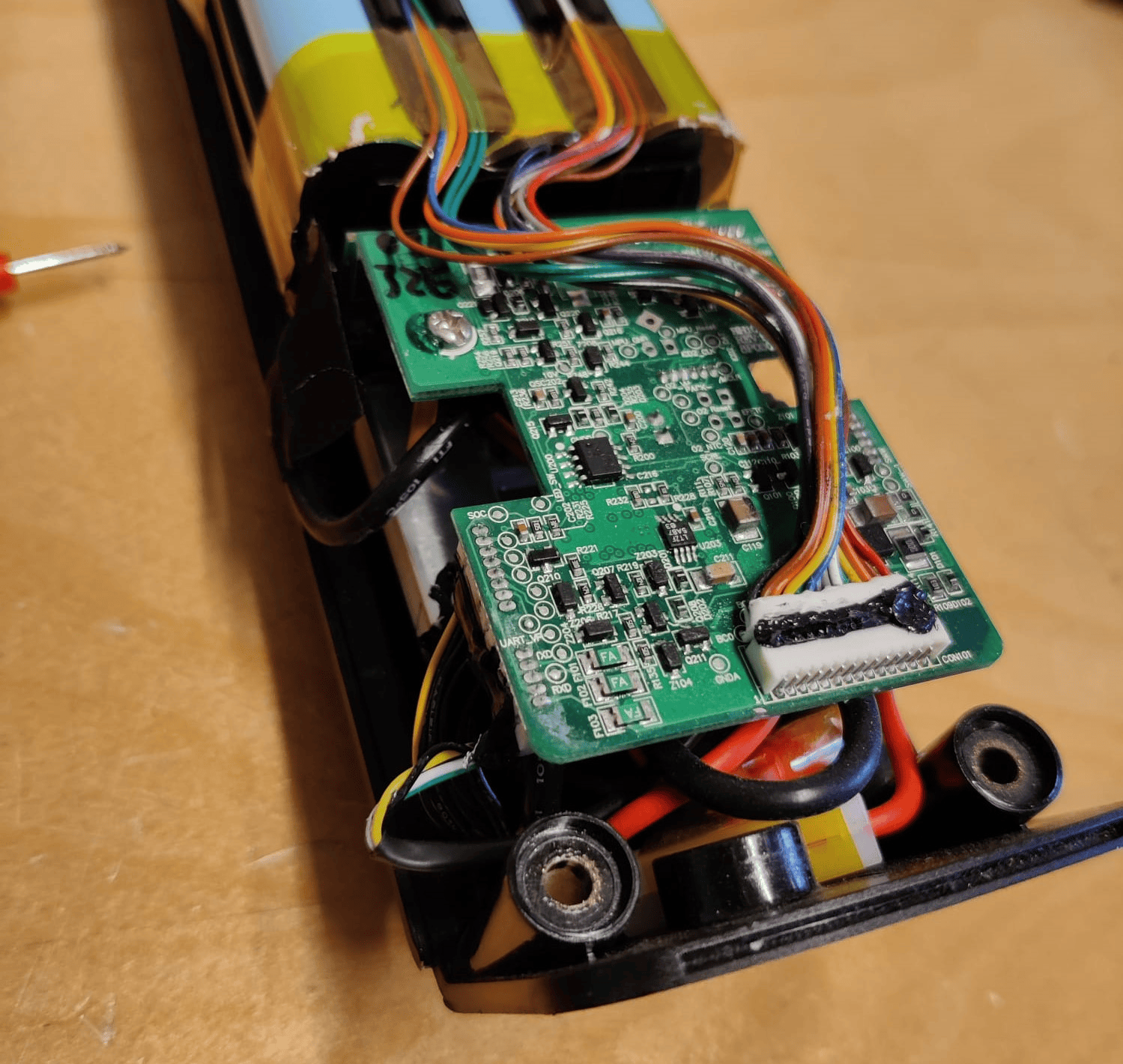

Flat with green BMS board

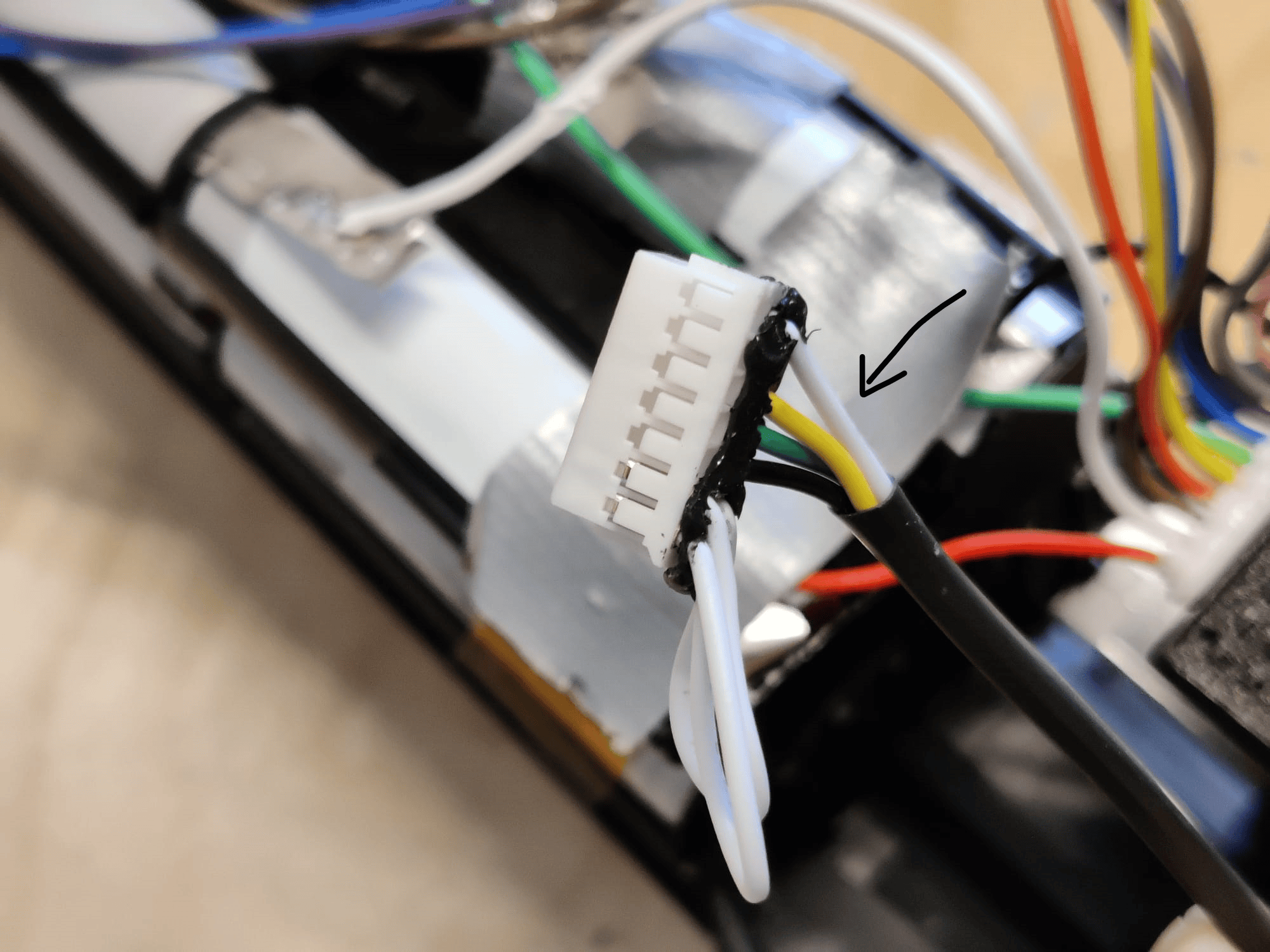

• White wire

Correspondent pin:

• Both for 36V and 48V

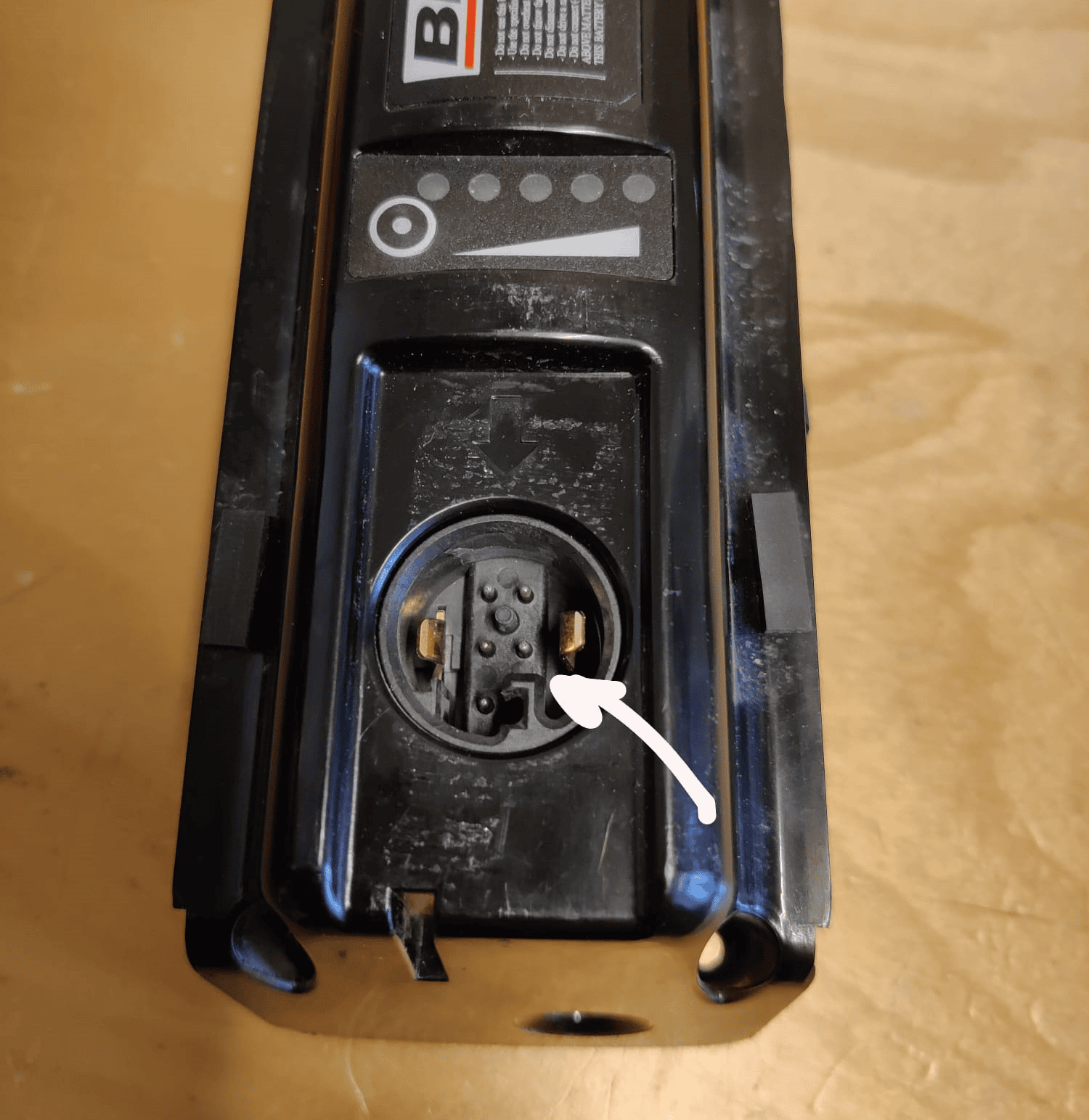

• Notch side starting from down, the first.

48V version

Needed 1 NTC resistor

36V version

No NTC resistor needed (it already includes it)

Banana Battery

• Both for 36V and 48V

The white wire

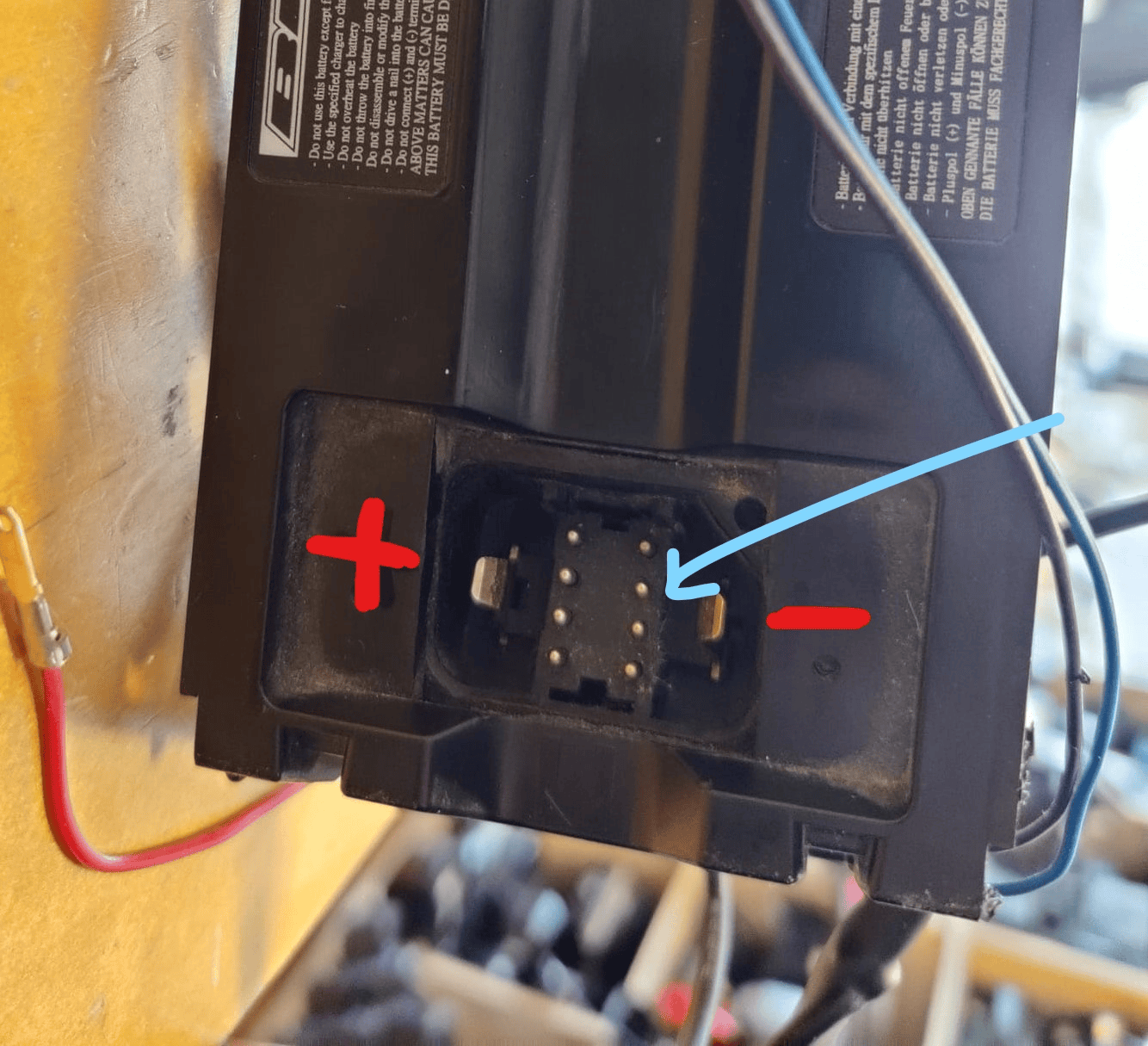

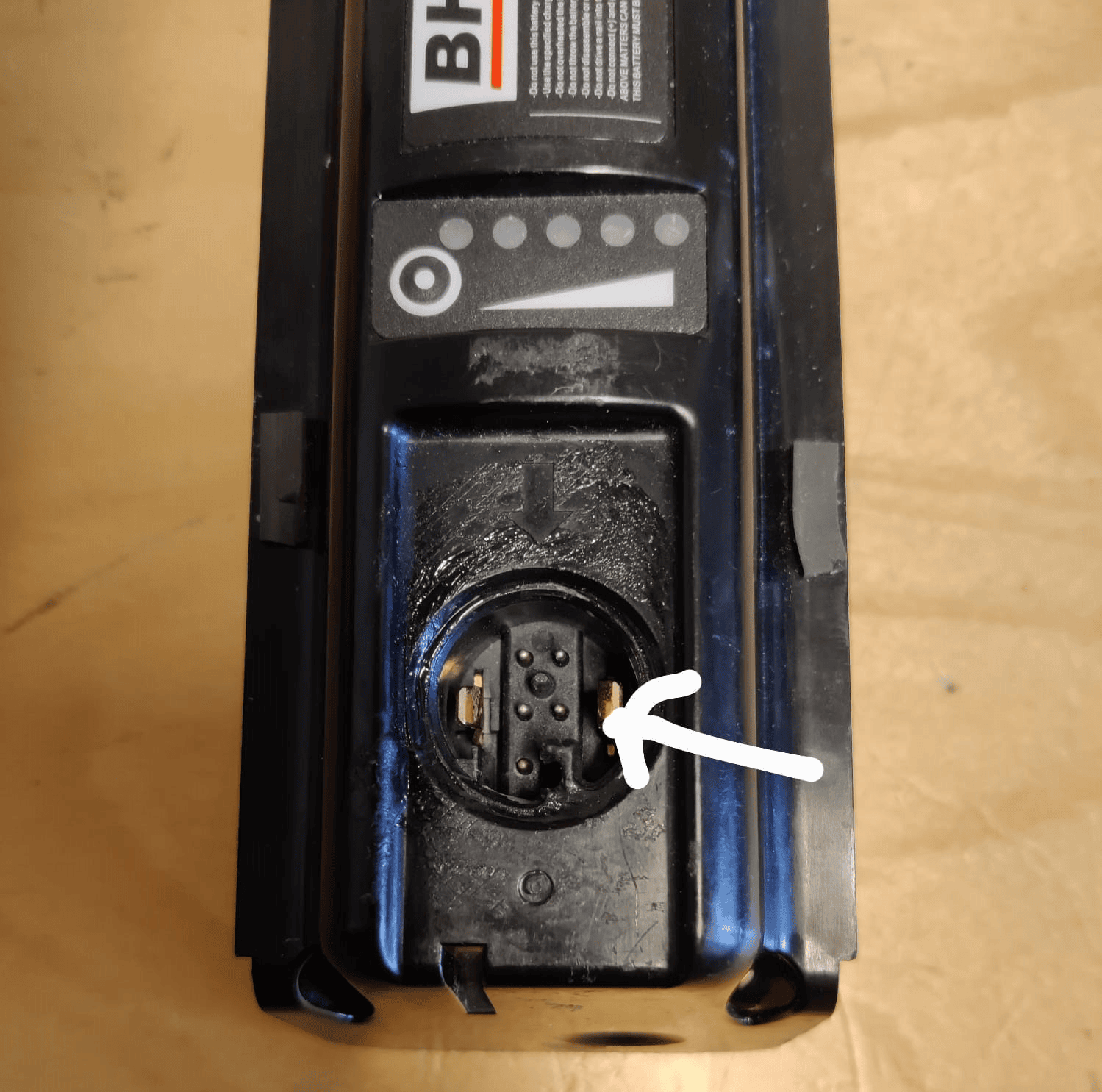

Negative side, the third starting from be bottom.
